125SH-G-03-TR-SMT-T/R

Adam Tech

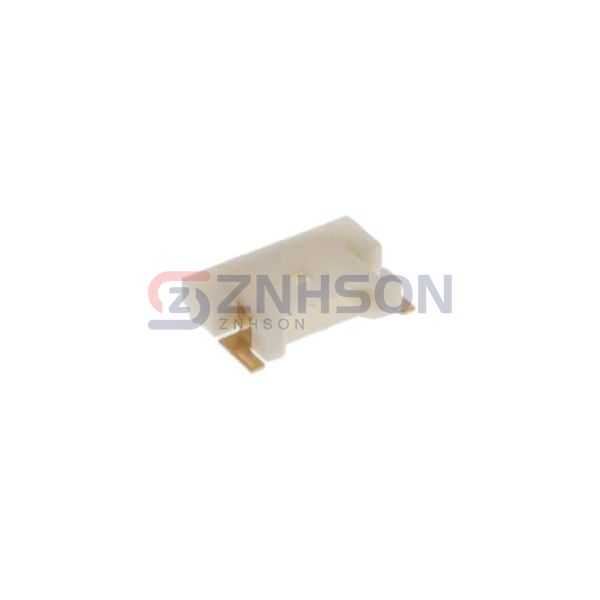

125SH-G-03-TR-SMT-T/R Preview
Adam Tech
CONN HDR SMD R/A 3POS 1.25MM
$0.56
Available to order
Reference Price (USD)
1+
$0.56000
500+
$0.5544
1000+
$0.5488
1500+
$0.5432
2000+
$0.5376
2500+
$0.532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Adam Tech 125SH-G-03-TR-SMT-T/R is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
125SH-G-03-TR-SMT-T/R

125SH-G-03-TR-SMT-T/R

$0.56

Product details

Enhance your electronic designs with the 125SH-G-03-TR-SMT-T/R rectangular connector header from Adam Tech. This male pin connector is engineered to provide secure and reliable connections in various applications. Its compact design and high-quality materials ensure long-lasting performance even in challenging conditions. The 125SH-G-03-TR-SMT-T/R is perfect for PCB mounting, offering a stable interface for signal and power transmission. Its versatility makes it suitable for use in industrial automation, telecommunications, and consumer electronics. The connector's robust construction resists wear and tear, ensuring consistent operation over time. With easy installation and maintenance, the 125SH-G-03-TR-SMT-T/R simplifies your connectivity needs. Trust Adam Tech for a connector that combines innovation and reliability. Ready to integrate this solution into your project? Contact us for a quote now.

General specs

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.049" (1.25mm)
  • Number of Positions: 3
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Surface Mount, Right Angle
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Contact Length - Mating: -
  • Contact Length - Post: -
  • Overall Contact Length: -
  • Insulation Height: 0.134" (3.40mm)
  • Contact Shape: Rectangular
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: -
  • Contact Finish - Post: Tin
  • Contact Material: Brass
  • Insulation Material: Thermoplastic
  • Features: Solder Retention
  • Operating Temperature: -40°C ~ 85°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Current Rating (Amps): 1A
  • Voltage Rating: 100VAC
