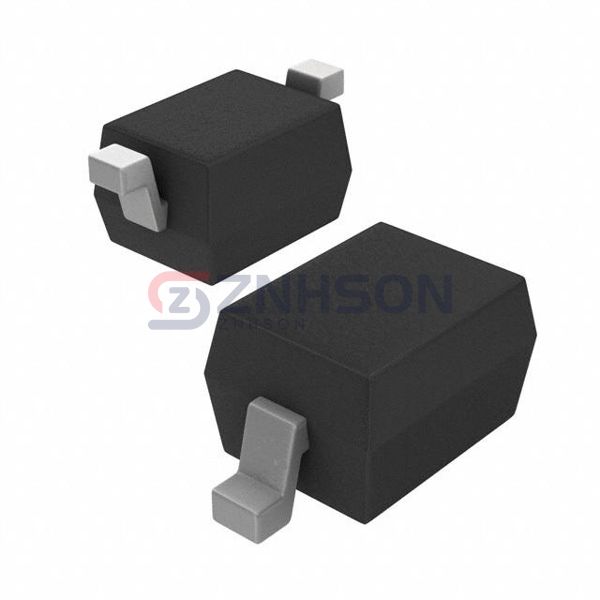

SD101AWS-7-F

Diodes Incorporated
SD101AWS-7-F Preview
Diodes Incorporated
DIODE SCHOTTKY 60V 15MA SOD323
$0.40
Available to order
Reference Price (USD)
3,000+
$0.09000
6,000+
$0.08550
15,000+
$0.07875
30,000+
$0.07425
75,000+
$0.07200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Diodes Incorporated SD101AWS-7-F is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
SD101AWS-7-F

SD101AWS-7-F

$0.40

Product details

Enhance your circuit designs with the SD101AWS-7-F single rectifier diode by Diodes Incorporated, engineered for precision and durability. This diode excels in converting AC to DC with minimal power loss, ensuring energy-efficient operation across a wide range of conditions. The SD101AWS-7-F features optimized junction design for improved heat dissipation and long-term reliability. Its excellent rectification efficiency makes it suitable for high-frequency applications. Typical uses include switch-mode power supplies, LED drivers, and motor control circuits. The diode's robust construction withstands harsh environmental conditions, making it ideal for automotive and industrial applications. Additional benefits include low forward voltage drop and high reverse voltage capability. Explore how the SD101AWS-7-F can improve your power management solutions by contacting our sales team for more information.

General specs

  • Product Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 60 V
  • Current - Average Rectified (Io): 15mA (DC)
  • Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr): 1 ns
  • Current - Reverse Leakage @ Vr: 200 µA @ 50 V
  • Capacitance @ Vr, F: 2pF @ 0V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SC-76, SOD-323
  • Supplier Device Package: SOD-323
  • Operating Temperature - Junction: -65°C ~ 125°C
