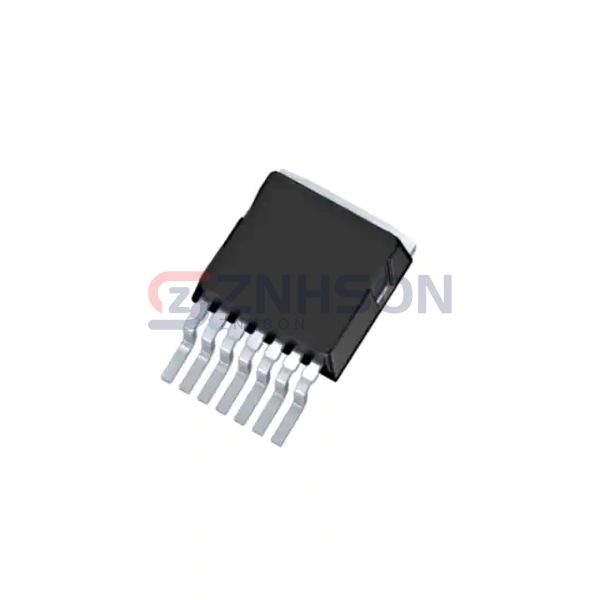

IMBG120R090M1HXTMA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 26A TO263
$14.13
Available to order
Reference Price (USD)
1+
$14.13000
500+
$13.9887
1000+
$13.8474
1500+
$13.7061
2000+
$13.5648
2500+
$13.4235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Infineon Technologies IMBG120R090M1HXTMA1 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
IMBG120R090M1HXTMA1
$14.13
Product details
The IMBG120R090M1HXTMA1 single MOSFET from Infineon Technologies represents the pinnacle of Discrete Semiconductor Products in the Transistors - FETs, MOSFETs - Single category. Engineered for precision and reliability, this component offers outstanding electrical characteristics that benefit a wide range of electronic applications. Its advanced semiconductor technology ensures minimal conduction losses and efficient heat dissipation, critical factors in power-sensitive designs. The IMBG120R090M1HXTMA1 features an optimized package design that enhances thermal performance while maintaining a compact footprint. Key benefits include improved switching efficiency, better load handling capacity, and enhanced protection against voltage spikes. These attributes make it indispensable for electric vehicle charging systems, uninterruptible power supplies, and industrial motor drives. In the consumer sector, it excels in high-efficiency adapters, laptop power systems, and advanced lighting solutions. The component's reliability also makes it suitable for critical infrastructure applications like data center power distribution and emergency backup systems. For design engineers seeking a MOSFET that combines performance with durability, the IMBG120R090M1HXTMA1 delivers on all fronts. Take the next step in your project development use our online inquiry form to request detailed specifications and purchasing information today.
General specs
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 26A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 125mOhm @ 8.5A, 18V
- Vgs(th) (Max) @ Id: 5.7V @ 3.7mA
- Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 18 V
- Vgs (Max): +18V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 763 pF @ 800 V
- FET Feature: Standard
- Power Dissipation (Max): 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-TO263-7-12
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
