IRLML2246TRPBF

Infineon Technologies

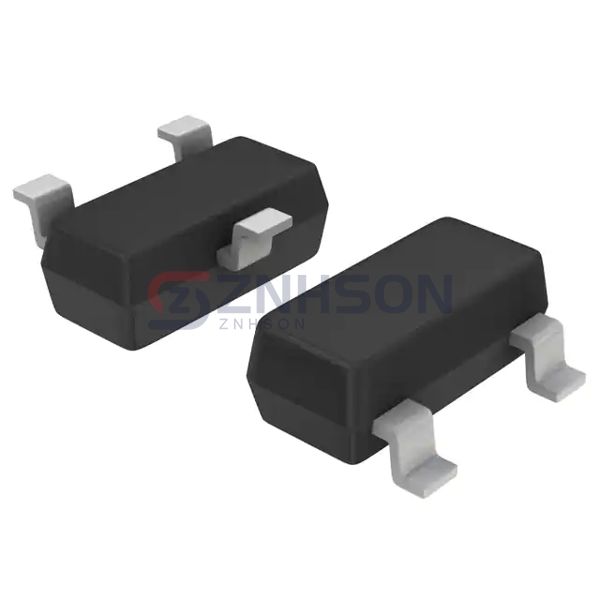

IRLML2246TRPBF Preview
Infineon Technologies
MOSFET P-CH 20V 2.6A SOT23
$0.50
Available to order
Reference Price (USD)
3,000+
$0.11662
6,000+
$0.11014
15,000+
$0.10042
30,000+
$0.09395
75,000+
$0.08423
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Infineon Technologies IRLML2246TRPBF is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
IRLML2246TRPBF

IRLML2246TRPBF

$0.50

Product details

Enhance your electronic designs with the IRLML2246TRPBF single MOSFET transistor from Infineon Technologies, a premium Discrete Semiconductor Product in the Transistors - FETs, MOSFETs - Single classification. This power-efficient component excels in switching applications, delivering robust performance with minimal energy loss. The IRLML2246TRPBF features an optimized gate drive characteristic that ensures smooth operation across various voltage ranges. Its compact design doesn't compromise on power handling capabilities, making it suitable for space-constrained applications. Notable advantages include superior noise immunity, stable operation under varying load conditions, and enhanced electrostatic discharge protection. These qualities make the IRLML2246TRPBF particularly valuable for medical equipment, telecommunications infrastructure, and aerospace electronics. Implement this MOSFET in your next project involving DC-DC converters, load switches, or power distribution systems. The component's reliability and efficiency will significantly improve your system's overall performance. For engineers seeking quality MOSFET solutions, the IRLML2246TRPBF represents an excellent choice. Visit our website to request a quote or submit your inquiry directly through our online portal for prompt assistance.

General specs

  • Product Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20 V
  • Current - Continuous Drain (Id) @ 25°C: 2.6A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 135mOhm @ 2.6A, 4.5V
  • Vgs(th) (Max) @ Id: 1.1V @ 10µA
  • Gate Charge (Qg) (Max) @ Vgs: 2.9 nC @ 4.5 V
  • Vgs (Max): ±12V
  • Input Capacitance (Ciss) (Max) @ Vds: 220 pF @ 16 V
  • FET Feature: -
  • Power Dissipation (Max): 1.3W (Ta)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: Micro3™/SOT-23
  • Package / Case: TO-236-3, SC-59, SOT-23-3
