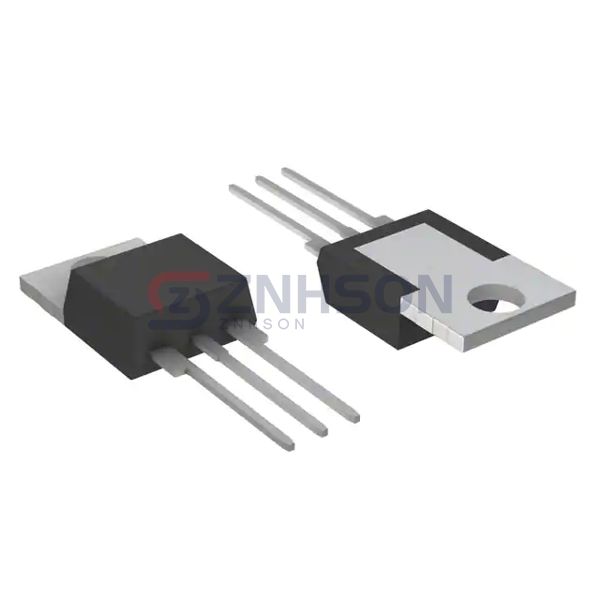

S8012R
Littelfuse Inc.
Littelfuse Inc.
SCR 800V 12A TO220
$0.00
Available to order
Reference Price (USD)
1+
$1.84000
10+
$1.67000
25+
$1.49920
100+
$1.35660
250+
$1.21412
500+
$1.07160
1,000+
$0.90060
2,500+
$0.84360
5,000+
$0.81510
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Littelfuse Inc. S8012R is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
S8012R
$0.00
Product details
The S8012R from Littelfuse Inc. stands as a benchmark for quality in the Thyristors - SCRs category, offering reliable power control for industrial electronics. This discrete semiconductor product combines high-current handling with precision switching capabilities, making it ideal for critical power management applications. Its robust design ensures stable operation in challenging electrical environments.
Notable features include excellent thermal cycling performance, high commutation dv/dt capability, and optimized gate drive requirements. The S8012R demonstrates superior blocking voltage characteristics and fast response times. Its construction incorporates advanced materials for enhanced reliability under repetitive switching conditions.
Effective utilization scenarios encompass: 1) Industrial battery charging systems, 2) Power control modules for plastic injection molding machines, and 3) Voltage regulation in heavy industrial equipment. The SCR also finds application in wind turbine pitch control systems, electrolysis plants, and large-scale UPS installations.
For detailed specifications and bulk pricing options on the S8012R, please complete our online inquiry form. Our application engineers will provide tailored recommendations based on your technical requirements.
General specs
- Product Status: Discontinued at Digi-Key
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 1.5 V
- Current - Gate Trigger (Igt) (Max): 20 mA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 7.6 A
- Current - On State (It (RMS)) (Max): 12 A
- Current - Hold (Ih) (Max): 40 mA
- Current - Off State (Max): 20 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 100A, 120A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220 Non-Isolated Tab
