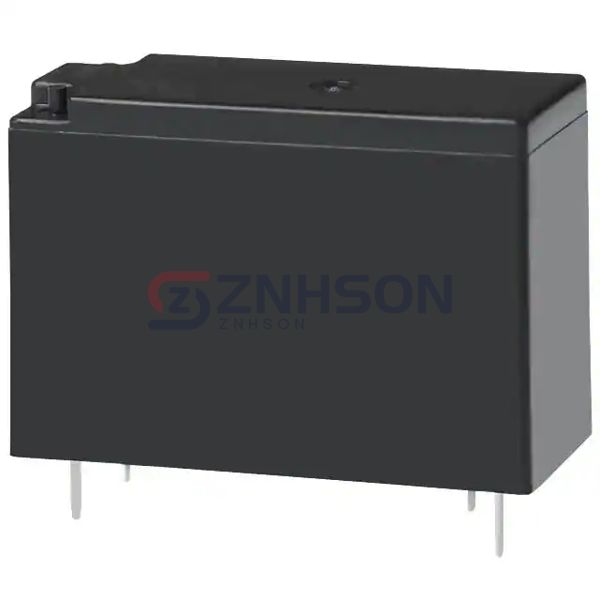

JW1AFSN-DC9V-F
Panasonic Electric Works
Panasonic Electric Works
RELAY GEN PURPOSE SPST 10A 9V
$1.66
Available to order
Reference Price (USD)
100+
$2.30400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Panasonic Electric Works JW1AFSN-DC9V-F is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
JW1AFSN-DC9V-F
$1.66
Product details
Engineered for excellence, the JW1AFSN-DC9V-F power relay by Panasonic Electric Works handles currents over 2 amps with precision and reliability. This advanced relay features a dual-contact system that provides redundancy for critical applications. Its low-profile design makes it perfect for space-constrained installations in control cabinets and power distribution units. The JW1AFSN-DC9V-F is commonly specified for use in semiconductor manufacturing equipment, large-scale LED displays, and electric vehicle power systems. The relay's silver alloy contacts ensure minimal voltage drop and consistent performance. With its wide coil voltage range, it adapts to various control circuit requirements. Additional applications include amusement park rides, stage lighting controls, and large pump systems. The JW1AFSN-DC9V-F undergoes rigorous quality testing to guarantee performance in the most demanding conditions. For technical specifications and application notes, download our product brochure or contact our engineering team directly.
General specs
- Product Status: Active
- Mounting Type: Through Hole
- Coil Voltage: 9VDC
- Contact Form: SPST-NO (1 Form A)
- Contact Rating (Current): 10 A
- Switching Voltage: 250VAC, 30VDC - Max
- Coil Current: 58 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: PC Pin
- Seal Rating: Sealed - Fully
- Coil Insulation: -
- Must Operate Voltage: 6.3 VDC
- Must Release Voltage: 0.9 VDC
- Operate Time: 15 ms
- Release Time: 5 ms
- Operating Temperature: -40°C ~ 60°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Relay Type: General Purpose
