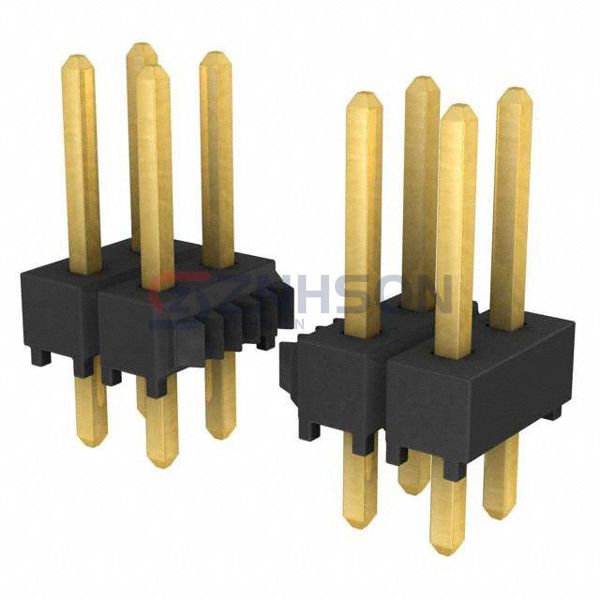

TSW-109-07-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 18POS 2.54MM
$1.81
Available to order
Reference Price (USD)
1+
$1.65000
10+
$1.49800
25+
$1.40600
50+
$1.34480
100+
$1.28370
250+
$1.16144
500+
$1.06974
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Samtec Inc. TSW-109-07-G-D is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TSW-109-07-G-D
$1.81
Product details
The TSW-109-07-G-D by Samtec Inc. is a top-performing rectangular connector header with male pins, designed for secure and stable interconnections. This connector is suitable for a wide range of applications, including consumer electronics, automotive systems, and industrial equipment. Its high-quality materials and precise engineering ensure reliable performance in demanding environments. The TSW-109-07-G-D provides excellent conductivity and signal integrity, making it a preferred choice for engineers. Its easy-to-use design allows for quick installations and minimal maintenance. Trust Samtec Inc. to deliver a connector that meets your exact specifications. Elevate your connectivity solutions today by submitting an inquiry.
General specs
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.430" (10.92mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
