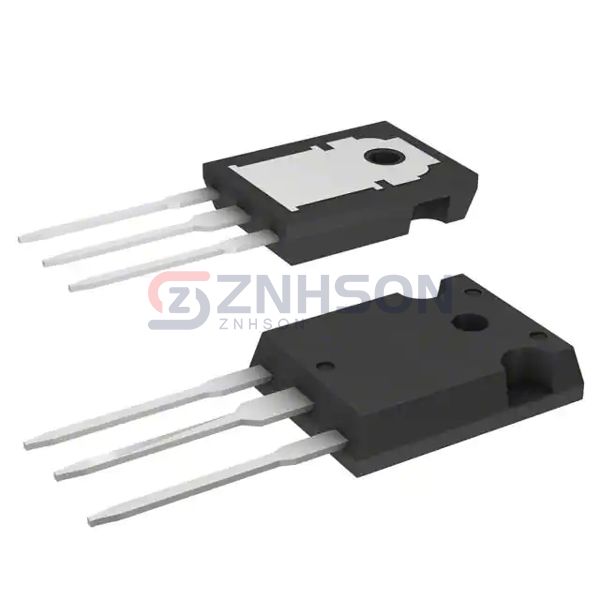

STW36NM60ND
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 29A TO247
$5.62
Available to order
Reference Price (USD)
600+
$6.52828
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
STMicroelectronics STW36NM60ND is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
STW36NM60ND
$5.62
Product details
The STW36NM60ND from STMicroelectronics is a technologically advanced single MOSFET transistor belonging to the Discrete Semiconductor Products family (Transistors - FETs, MOSFETs - Single). This component sets new standards in power switching efficiency, offering designers a perfect balance between performance and reliability. Engineered with precision, the STW36NM60ND demonstrates outstanding characteristics including fast switching capability, low power dissipation, and excellent thermal stability. These features make it particularly suitable for high-frequency applications and power-sensitive designs. The MOSFET finds extensive use in electric vehicle components, industrial welding equipment, and advanced power supply units. It's equally effective in consumer electronics such as high-efficiency LED drivers, smart appliances, and portable electronic devices. For infrastructure applications, the STW36NM60ND proves invaluable in telecom power systems, base station equipment, and railway electronics. Its rugged design ensures consistent performance even in challenging operating conditions. Design engineers will appreciate the component's versatility and the design flexibility it offers across multiple voltage and current ranges. To learn more about how the STW36NM60ND can enhance your specific application, we invite you to submit an online inquiry. Our technical sales team stands ready to provide detailed product information and purchasing options tailored to your project needs.
General specs
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 29A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 110mOhm @ 14.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 80.4 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 2785 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 190W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
