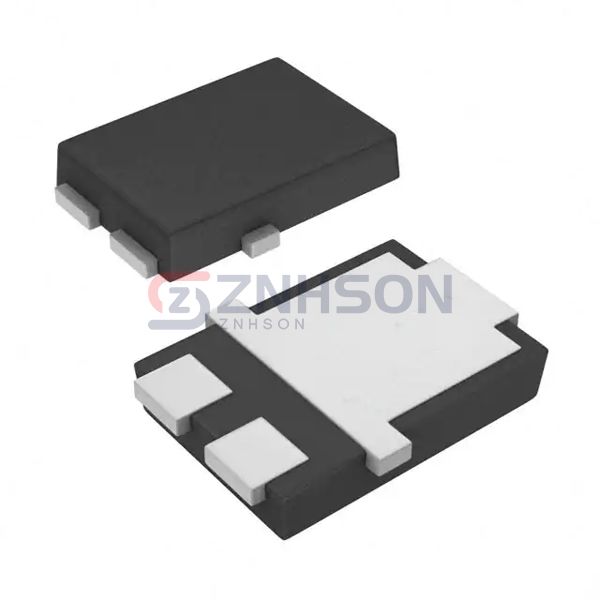

TSUP10M60SH S1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
10A, 60V, SCHOTTKY RECTIFIER
$1.68
Available to order
Reference Price (USD)
1+
$1.68000
500+
$1.6632
1000+
$1.6464
1500+
$1.6296
2000+
$1.6128
2500+
$1.596
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Taiwan Semiconductor Corporation TSUP10M60SH S1G is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TSUP10M60SH S1G
$1.68
Product details
Experience superior rectification performance with the TSUP10M60SH S1G single diode from Taiwan Semiconductor Corporation, engineered for excellence in power electronics. This component offers an optimal balance between forward voltage characteristics and reverse leakage current, ensuring efficient energy conversion. The diode's advanced construction provides excellent thermal stability and long-term reliability in continuous operation. Designers will appreciate its versatility in applications ranging from consumer appliances to industrial power systems. The TSUP10M60SH S1G performs exceptionally well in UPS systems, electric vehicle power trains, and renewable energy converters. Its robust design withstands electrical transients and mechanical stress, making it ideal for transportation and infrastructure applications. Additional benefits include consistent batch-to-batch performance and compatibility with automated assembly processes. For engineers seeking a reliable rectification solution, the TSUP10M60SH S1G delivers outstanding results. Contact us today to learn more about this high-performance diode and its applications.
General specs
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 10A (DC)
- Voltage - Forward (Vf) (Max) @ If: 640 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 250 µA @ 60 V
- Capacitance @ Vr, F: 658pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: SMPC4.6U
- Operating Temperature - Junction: -55°C ~ 175°C
