NLCV25T-R22M-PFR

TDK Corporation

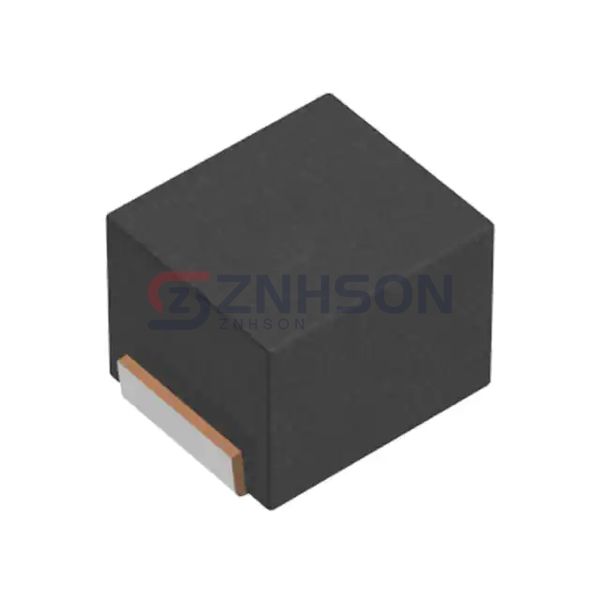

NLCV25T-R22M-PFR Preview
TDK Corporation
FIXED IND 220NH 1.69A 60MOHM SMD
$0.26
Available to order
Reference Price (USD)
1+
$0.26000
500+
$0.2574
1000+
$0.2548
1500+
$0.2522
2000+
$0.2496
2500+
$0.247
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

TDK Corporation NLCV25T-R22M-PFR is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
NLCV25T-R22M-PFR

NLCV25T-R22M-PFR

$0.26

Product details

The NLCV25T-R22M-PFR by TDK Corporation is a high-performance fixed inductor designed for precision and reliability in demanding applications. Featuring excellent thermal stability and low power loss, this inductor is perfect for power supplies, RF circuits, and audio systems. Its robust construction ensures durability in automotive, industrial, and telecommunications environments. The NLCV25T-R22M-PFR is also ideal for renewable energy systems and medical devices, offering consistent performance under varying loads. With its compact design and high efficiency, this inductor is easy to integrate into any electronic layout. Engineers and designers rely on TDK Corporation's NLCV25T-R22M-PFR for its superior quality and innovative features. Don't miss out submit an online inquiry today to learn more about how this inductor can benefit your projects.

General specs

  • Product Status: Not For New Designs
  • Type: Drum Core, Wirewound
  • Material - Core: Ferrite
  • Inductance: 220 nH
  • Tolerance: ±20%
  • Current Rating (Amps): 1.69 A
  • Current - Saturation (Isat): -
  • Shielding: Unshielded
  • DC Resistance (DCR): 60mOhm Max
  • Q @ Freq: 5 @ 25.2MHz
  • Frequency - Self Resonant: 400MHz
  • Ratings: -
  • Operating Temperature: -40°C ~ 125°C
  • Inductance Frequency - Test: 25.2 MHz
  • Features: -
  • Mounting Type: Surface Mount
  • Package / Case: 1008 (2520 Metric)
  • Supplier Device Package: 1008 (2520 Metric)
  • Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Max): 0.075" (1.90mm)
