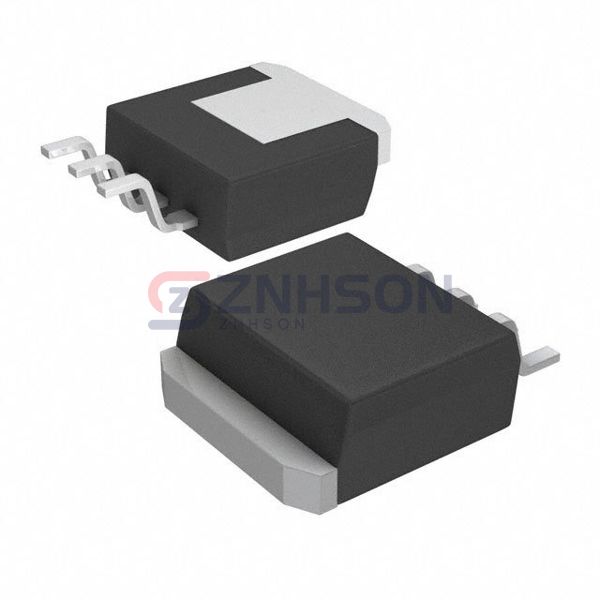

CSD18536KTTT
Texas Instruments
Texas Instruments
MOSFET N-CH 60V 200A/349A DDPAK
$6.26
Available to order
Reference Price (USD)
50+
$4.19080
100+
$3.82620
250+
$3.46184
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Texas Instruments CSD18536KTTT is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
CSD18536KTTT
$6.26
Product details
Optimize your power management solutions with the CSD18536KTTT single MOSFET transistor from Texas Instruments, a standout in the Discrete Semiconductor Products field (Transistors - FETs, MOSFETs - Single). This high-performance component delivers exceptional electrical characteristics designed for efficiency and reliability in demanding applications. The CSD18536KTTT features advanced semiconductor technology that minimizes energy loss while maximizing power handling capabilities. Its innovative design includes enhanced protection features against common electrical stresses, ensuring long-term operational stability. The MOSFET excels in applications ranging from server power supplies and network equipment to automotive electronics and industrial control systems. For renewable energy implementations, it's particularly effective in micro-inverters and charge controllers. The component also performs exceptionally in professional audio equipment and high-end power amplifiers where clean power delivery is crucial. With its combination of robust construction and electrical efficiency, the CSD18536KTTT provides designers with a reliable solution for their power switching needs. Ready to incorporate this high-quality MOSFET into your designs? Visit our website to submit your inquiry online our sales team will provide prompt assistance with specifications, availability, and pricing information tailored to your requirements.
General specs
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 200A (Ta), 349A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.6mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 140 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 11430 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 375W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DDPAK/TO-263-3
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
