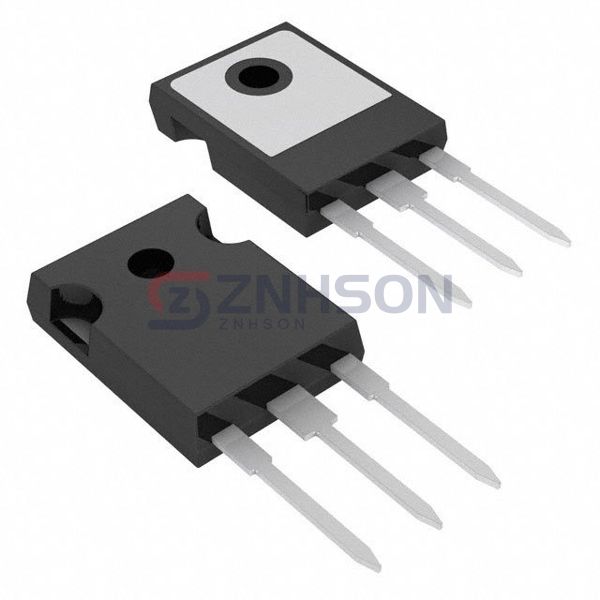

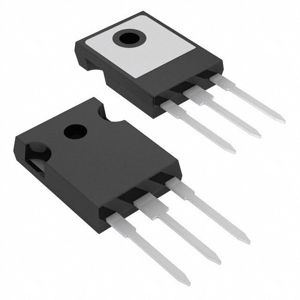

VS-40TPS12APBF
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 1.2KV 55A TO247AC
$0.00
Available to order
Reference Price (USD)
1+
$5.83000
10+
$5.23600
25+
$4.95000
100+
$4.29000
250+
$4.07000
500+
$3.65200
1,000+
$3.08000
2,500+
$2.92600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Vishay General Semiconductor - Diodes Division VS-40TPS12APBF is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
VS-40TPS12APBF
$0.00
Product details
Vishay General Semiconductor - Diodes Division's VS-40TPS12APBF represents a premium-grade SCR thyristor engineered for precision power management in discrete semiconductor applications. This device excels in AC power control systems with its exceptional forward blocking capability and fast switching response. The Thyristors - SCRs category product maintains stable performance even in high-ambient temperature environments.
Notable characteristics include symmetrical voltage blocking, high di/dt capability, and optimized gate sensitivity. The VS-40TPS12APBF features isolated mounting options for enhanced thermal dissipation and electrical safety. Its robust design minimizes switching losses while providing reliable overcurrent protection.
Industrial implementations include: 1) Phase-angle controllers for lighting systems, 2) Crowbar protection circuits in power distribution units, and 3) Motor speed regulators for conveyor systems. Additional use cases cover battery charging systems, medical equipment power supplies, and industrial automation controls.
Contact our sales team via the website inquiry form to discuss how the VS-40TPS12APBF can optimize your power electronics design. We offer technical support and volume pricing options for OEM applications.
General specs
- Product Status: Obsolete
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 2.5 V
- Current - Gate Trigger (Igt) (Max): 150 mA
- Voltage - On State (Vtm) (Max): 1.85 V
- Current - On State (It (AV)) (Max): 35 A
- Current - On State (It (RMS)) (Max): 55 A
- Current - Hold (Ih) (Max): 150 mA
- Current - Off State (Max): 500 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 600A @ 50Hz
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
