S3D15065A

SMC Diode Solutions

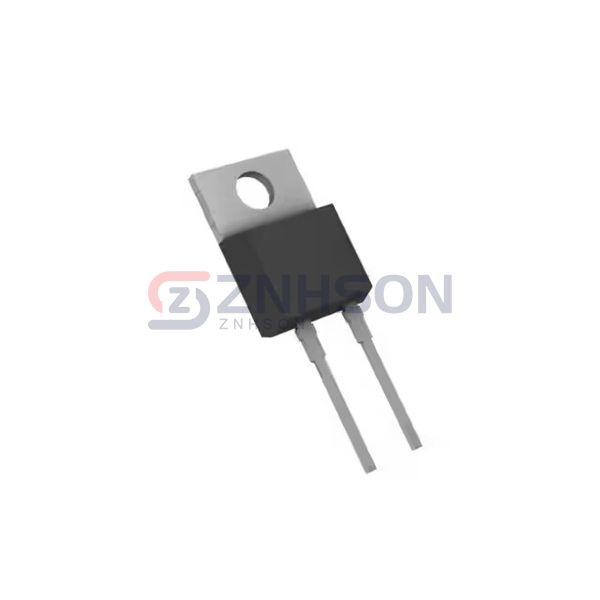

S3D15065A Preview
SMC Diode Solutions
DIODE SCHOTTKY SILICON CARBIDE S
$4.12
Available to order
Reference Price (USD)
1+
$4.12000
500+
$4.0788
1000+
$4.0376
1500+
$3.9964
2000+
$3.9552
2500+
$3.914
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

SMC Diode Solutions S3D15065A is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
S3D15065A

S3D15065A

$4.12

Product details

Enhance your circuit designs with the S3D15065A single rectifier diode by SMC Diode Solutions, engineered for precision and durability. This diode excels in converting AC to DC with minimal power loss, ensuring energy-efficient operation across a wide range of conditions. The S3D15065A features optimized junction design for improved heat dissipation and long-term reliability. Its excellent rectification efficiency makes it suitable for high-frequency applications. Typical uses include switch-mode power supplies, LED drivers, and motor control circuits. The diode's robust construction withstands harsh environmental conditions, making it ideal for automotive and industrial applications. Additional benefits include low forward voltage drop and high reverse voltage capability. Explore how the S3D15065A can improve your power management solutions by contacting our sales team for more information.

General specs

  • Product Status: Active
  • Diode Type: Silicon Carbide Schottky
  • Voltage - DC Reverse (Vr) (Max): 650 V
  • Current - Average Rectified (Io): 15A
  • Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 15 A
  • Speed: No Recovery Time > 500mA (Io)
  • Reverse Recovery Time (trr): 0 ns
  • Current - Reverse Leakage @ Vr: 25 µA @ 650 V
  • Capacitance @ Vr, F: 1290pF @ 0V, 1MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-220-2
  • Supplier Device Package: TO-220AC (TO-220-2)
  • Operating Temperature - Junction: -55°C ~ 175°C
