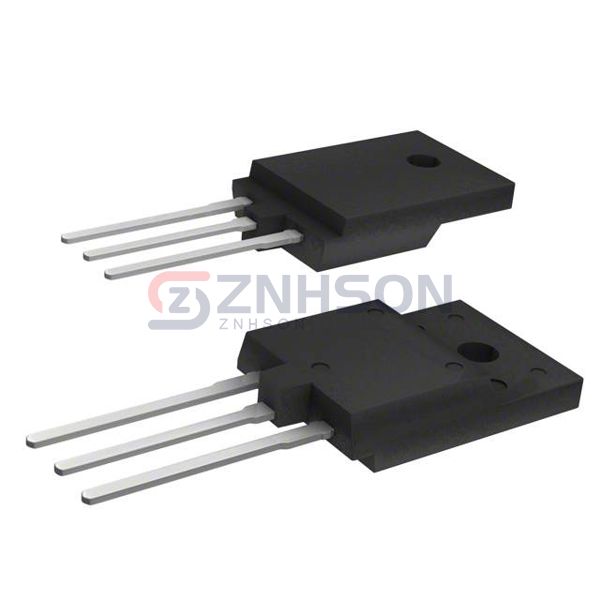

STGFW40V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 80A 62.5W TO-3PF
$0.00
Available to order
Reference Price (USD)
1+
$5.20000
30+
$4.41800
120+
$3.82883
510+
$3.25941
1,020+
$2.74890
2,520+
$2.61800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
STMicroelectronics STGFW40V60DF is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
STGFW40V60DF
$0.00
Product details
Enhance your power control systems with the STGFW40V60DF single IGBT transistor from STMicroelectronics. This high-performance component is tailored for applications demanding efficient energy conversion and minimal heat generation. The STGFW40V60DF is widely used in wind turbine inverters, HVAC systems, and medical power supplies, thanks to its exceptional reliability and fast response times. Its advanced architecture ensures low conduction losses and high switching frequencies, making it a top choice for modern power electronics. Whether you're upgrading existing systems or designing new ones, the STGFW40V60DF offers the flexibility and performance you need. Submit your inquiry online to learn more about this versatile IGBT transistor.
General specs
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 40A
- Power - Max: 62.5 W
- Switching Energy: 456µJ (on), 411µJ (off)
- Input Type: Standard
- Gate Charge: 226 nC
- Td (on/off) @ 25°C: 52ns/208ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 41 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3PFM, SC-93-3
- Supplier Device Package: TO-3PF-3
